Specifications

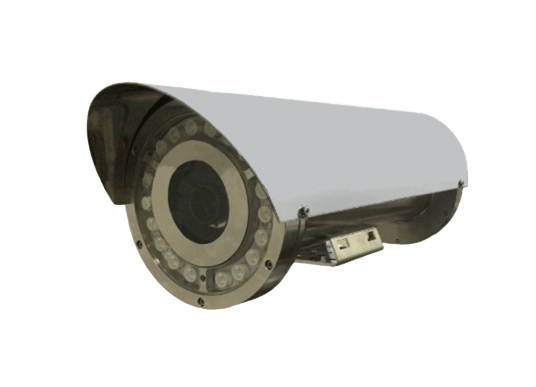

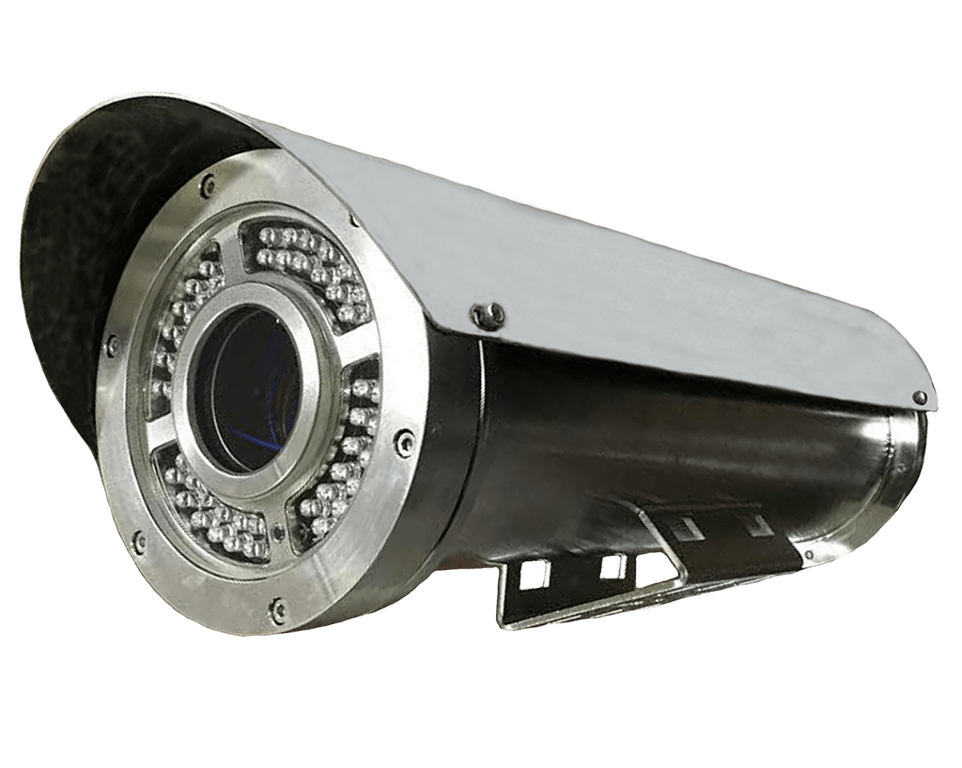

| Explosion-proof Stainless Steel IR Housing | |
| Model | YK-MP26-XX |
| Material | Corrosion-resistant stainless steel (SUS304 / SUS316) |
| External Finish | Original metal electrolytic treatment |
| IP Rating | Complies with international standards IEC60529:2001 / IP68 |
| Sunshield | Corrosion-resistant stainless steel (SUS304 / SUS316) |
| External Interface | Stainless steel 1/2" or 3/4" interface (Optional) |
| External Screws | Stainless steel |
| IR Distance | 48 High-brightness IR LEDs, distance 30–50 meters (Optional) |
| IR Distance | 18 High-power IR LEDs, distance 80–100 meters |
| Applications | Suitable for high temperature, chemical, corrosive, oil refining, or high salinity environments. |
| External Dimensions | 48 IR 400mm (L) * 145mm (W) * 145mm (H) including sunshield |
| External Dimensions | 18 IR 400mm (L) * 185mm (W) * 185mm (H) including sunshield |
| Accessories | Stainless steel bracket YK-0336-22 (Optional) |
| Bracket Dimensions | 350mm (L) * 124mm (W) * 100mm (H) |
