Function & Features

• Material: Stainless Steel SUS316 or 304
• Finish treatment can be optional electroplating or painting according to customer's requirement
• Entrance hole can be made according to customer’s requirement ( for example 1 inch NPT x 4 holes )
• External Dimension: 370mm ( L ) x 280mm ( W ) x 210mm (D )
• Internal Dimension: 290mm ( L ) x 200mm ( W ) x 190mm (D )
• Can implement power protector: Surge eliminating capability ≧ 40KA 8/20us

• Can implement input power source AC110 with 5A fuse ( or above) 　 　
• Can implement output power source: AC24V 3A*1 ( or above ), DC 5V 2A *1
• Meet Ingress Protection 68 ( TAF Lab. )
• Application: Hazardous area, highly corrosive environments or more dangerous environments, such as arsenals, chemical plants, oil, gas refineries, coal mining, etc.
• Certificate: Ex d IIB+H2 T6 Gb issued by ITRI ( Industrial Technology Research Institute )
• Certificate: Ex tb IIIC T85° C Db issued by ETC ( Taiwan Testing and Certification Center )
• TS Mark registering listed

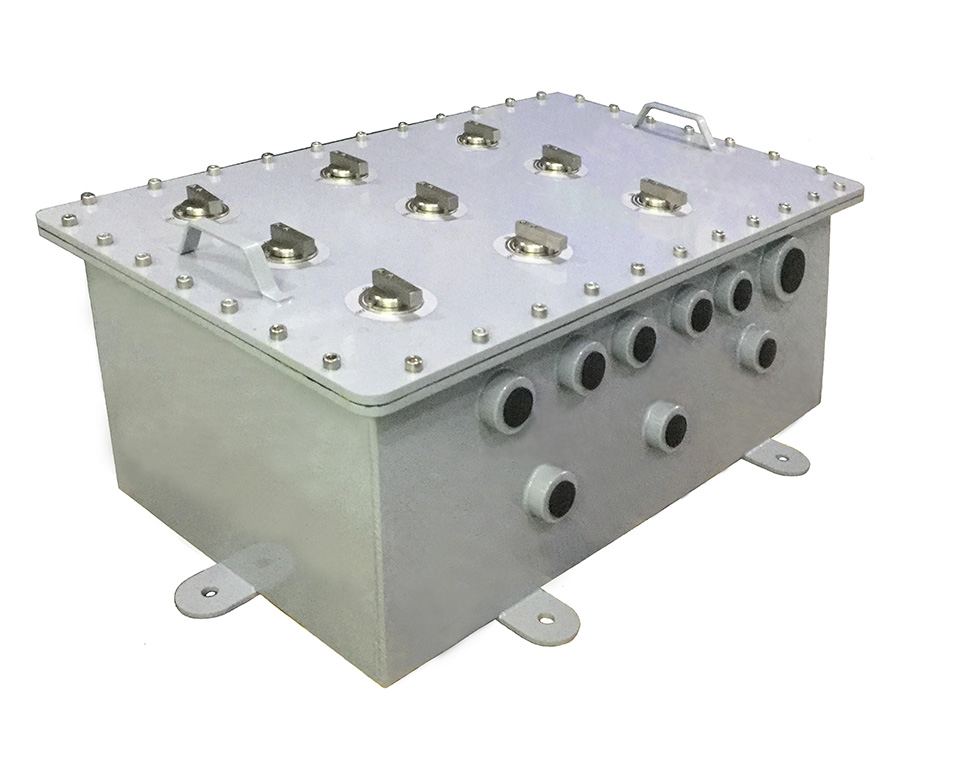

Function & Features

• Material: Stainless Steel SUS316 or 304
• Finish treatment can be optional electroplating or painting according to customer's requirement
• External Dimension: 580mm ( L ) x 480mm ( W ) x 300mm (D )
• Internal Dimension: 500mm ( L ) x 400mm ( W ) x 240mm (D )
• Main Power Switch NFB 2P 110VAC 60Hz 20A x 1pc

• Sub Power Switch NFB 2P 110VAC 60Hz 10A x 8pcs  　
• All power switches go with handle bar  　
• Entrance holes x 8pcs pre-built around bottom side
• Meet Ingress Protection 68 ( TAF Lab. )
• Application: Hazardous area, highly corrosive environments or more dangerous environments, such as arsenals, chemical plants, oil, gas refineries, coal mining, etc. / ZONE 2
• Certificate: Ex d IIB+H2 T6 Gb issued by ITRI ( Industrial Technology Research Institute ) TS Mark registering listed
